Hang the range hood on the wall hanging plate, make sure the range hood does not shake or fall off, keep the range hood in a horizontal state, and then fix the anti-drop plate to the wall at the position shown in the figure below to prevent the range hood from falling.
Please enter a keyword to search
Online
Other Product
All Product Categories

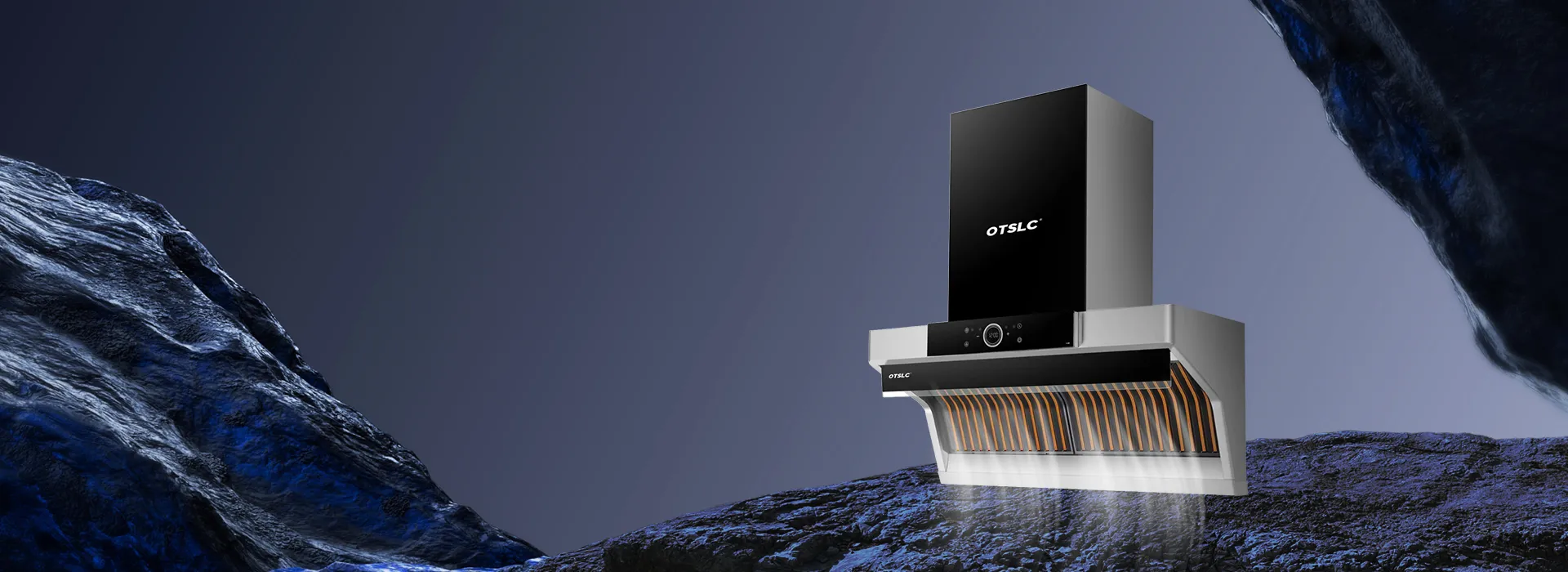

Range hood
This machine uses the principle of aerodynamics to make the oil smoke enter the machine more smoothly, and remove the oil smoke, odor and exhaust gas more thoroughly. The filter-type oil smoke adsorption separator forms two oil paths with the wind wheel volute, so that the oil in the range hood can flow into the oil storage tank without oil leakage, and it is more convenient to unload the oil.
Range hood
This machine uses the principle of aerodynamics to make the oil smoke enter the machine more smoothly, and remove the oil smoke, odor and exhaust gas more thoroughly. The filter-type oil smoke adsorption separator forms two oil paths with the wind wheel volute, so that the oil in the range hood can flow into the oil storage tank without oil leakage, and it is more convenient to unload the oil.

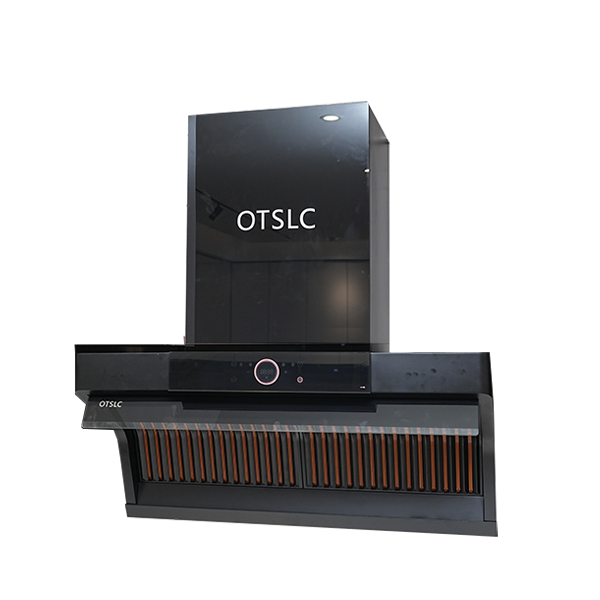

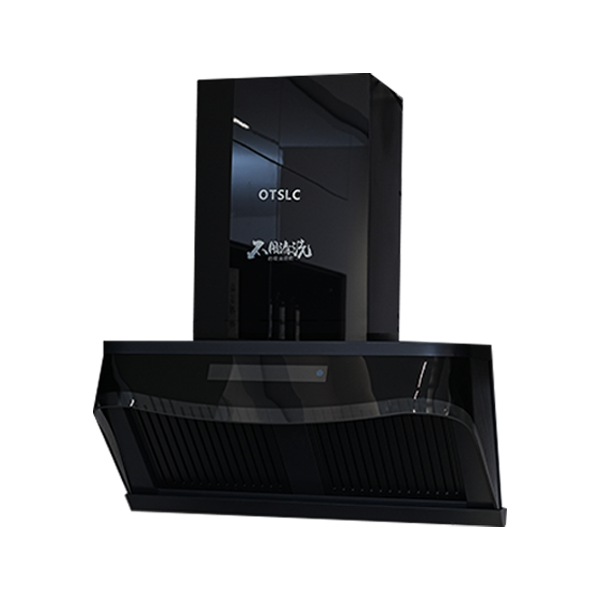

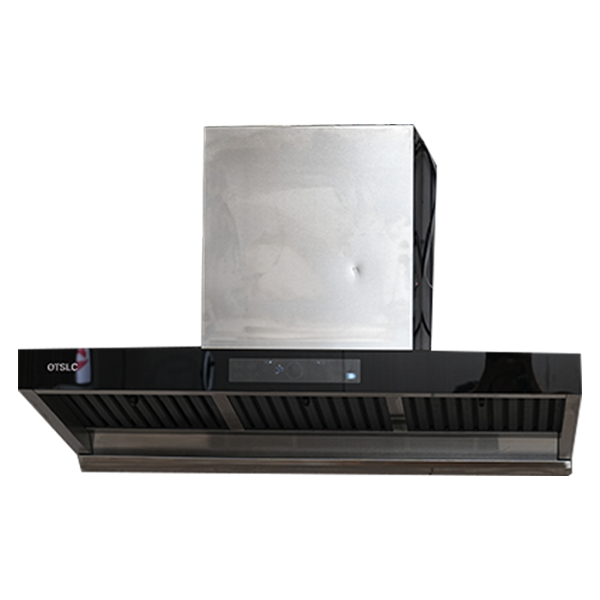

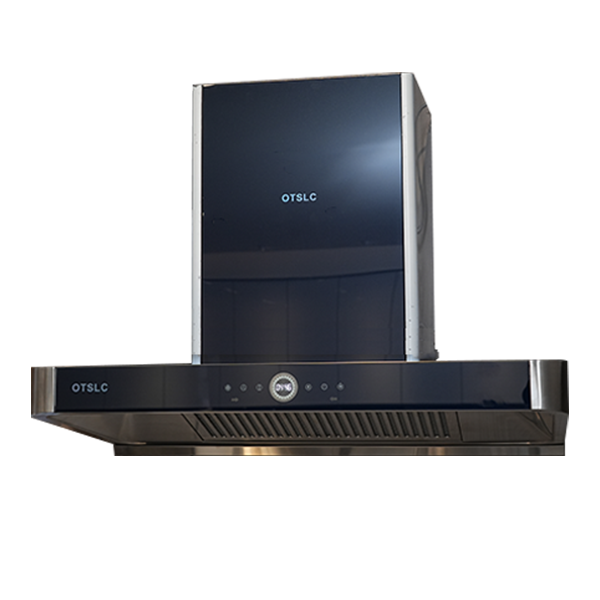

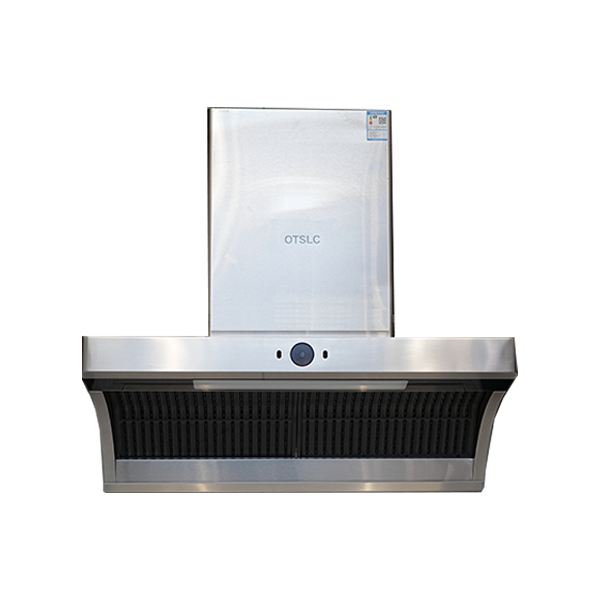

Product Image Display
Specifications
| Product Name | Range hood | ||||
|---|---|---|---|---|---|
| Rated voltage | 220V~ | Rated frequency | 50Hz | Maximum static pressure | 490Pa |
| Rated Power | 303W | Thermal degreasing power | -- | Thermal degreasing power | ≤3W |
| net weight | 26.16kg | Gross Weight | 31. 26kg | Energy efficiency rating | Level 1 |
| Working air volume | 11m3/min | Maximum air volume | 19m3/min | Stir-fry air volume | 21m3/min |
| Maximum full pressure efficiency | 24% | Rated input power of main motor | 300W | Smoke pipe outer diameter | 24% |
| Semi-anechoic chamber high-grade noise | 71 dB (A) | High-grade working noise | 71dB (A) | Dimensions | Φ185mm |
| Normal odor reduction | 95% | Oil separation | 93% | 900*425*920 | |
|

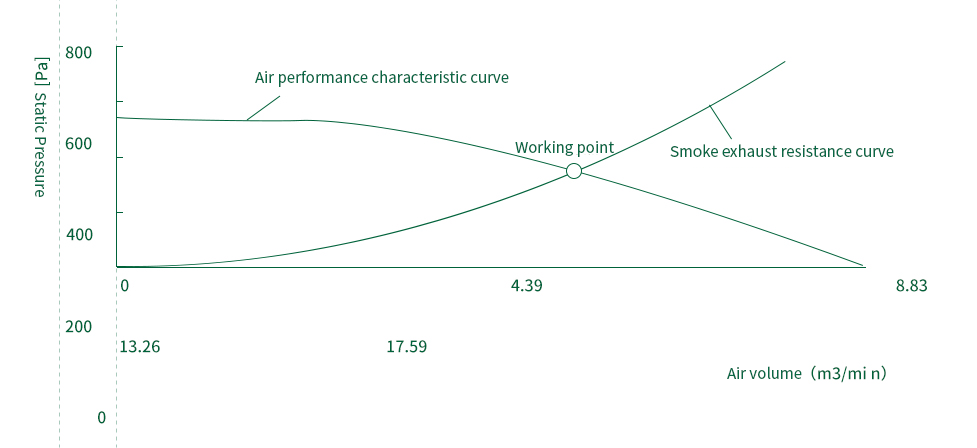

Air performance Characteristic curve and resistance curve |
 |
||||

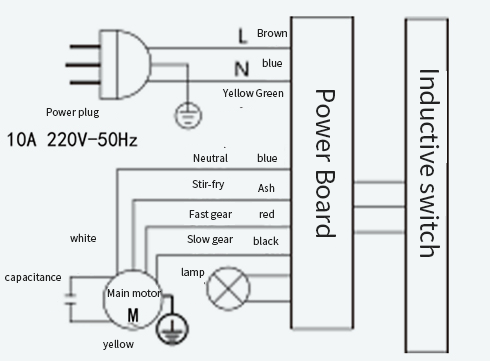

Structure or Installation Instructions
Operation Instructions or Principles

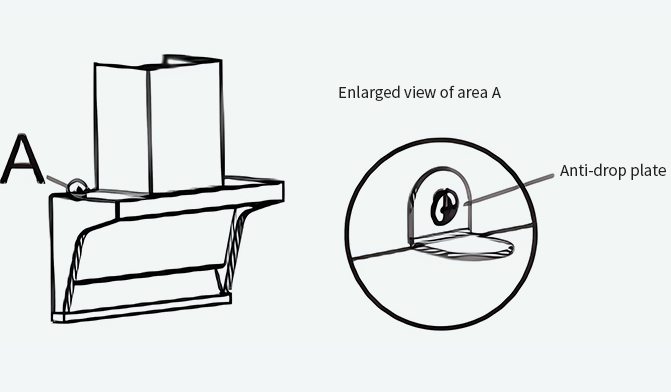

Hang the range hood on the wall hanging plate, make sure the range hood is not shaking or falling off, keep the range hood in a horizontal state, and then fix the anti-drop plate to the wall at the position shown in the figure below to prevent the range hood from falling.
Product Advantages
01
Decomposes oil smoke without oil stains
Suction power remains unchanged, no smoke leakage
02
03
Silent motor, consistent power
Efficient operation and long service life
04
05
Green and healthy, no secondary carcinogens volatilization, protect the safety of your family
Excellent after-sales service: refund and return within half a year
06
FAQs
01
Why don't the blades of the machine keep turning?
Expand ( + )
Collapse (-)
This is completely normal. Through hundreds of thousands of tests, the laboratory finally designed and determined the intelligent program of heating-grinding-keeping-cooling. By programming separate or cross-heating and grinding operations in different operation stages, we can save a lot of electricity.
02
Should I add the additional purchased EM bacteria? At what stage should we add it?
Expand ( + )
Collapse (-)
This is completely normal. Through hundreds of thousands of tests, the laboratory finally designed and determined the intelligent program of heating-grinding-keeping-cooling. By programming separate or cross-heating and grinding operations in different operation stages, we can save a lot of electricity.
03
How do I apply fertilizer from a food waste disposer to my garden plants?
Expand ( + )
Collapse (-)
This is completely normal. Through hundreds of thousands of tests, the laboratory finally designed and determined the intelligent program of heating-grinding-keeping-cooling. By programming separate or cross-heating and grinding operations in different operation stages, we can save a lot of electricity.
04
How do you know if the fertilizer is too dry or too wet?
Expand ( + )
Collapse (-)
This is completely normal. Through hundreds of thousands of tests, the laboratory finally designed and determined the intelligent program of heating-grinding-keeping-cooling. By programming separate or cross-heating and grinding operations in different operation stages, we can save a lot of electricity.
05
How many days can I leave unprocessed food waste in the machine? Will there be any smell?
Expand ( + )
Collapse (-)
This is completely normal. Through hundreds of thousands of tests, the laboratory finally designed and determined the intelligent program of heating-grinding-keeping-cooling. By programming separate or cross-heating and grinding operations in different operation stages, we can save a lot of electricity.
